Electrical Specifications:
|
Item / Type |
9N (SMD VCXO) |
|
Dimensions |
14.0×9.10×3.60 mm |
|
Waveform |
CMOS |
|
Output load |
15pF, or specify |
|
Output frequency range |
50MHz~125MHz |
|
Supply voltage |
3.3V / 5.0V |
|
Frequency tolerance |
±25ppm, ±50ppm, ±100ppm |
|
Operating temperature |
-20~+70ºC, -40~+85ºC |
|
Supply current |
30mA max. |
|
Symmetry |
45% to 55% |
|
Output voltage Voh (min.) /Vol (max.) |
90% Vcc min. / 10% Vcc max. |
|
Rise time /Fall time |
3ns max. |
|
Start-up time |
10ms max. |
|
RMS phase jitter (12kHz~20MHz) |
1pS max. |
|
Phase noise (@1kHz) |
-140dBc/Hz |
|
Storage temperature |
-55~+125ºC |
|
Absolute pulling range (APR) |
±25ppm min., or specify |
|
Control voltage range |
0.3V~3.0V@3.3V, 0.5V~4.5V@5.0V |
|
Linearity |
10% max. |
|
Input impedance |
1MΩ min. |
|
Modulation bandwidth (BW) |
1 kHz min. |

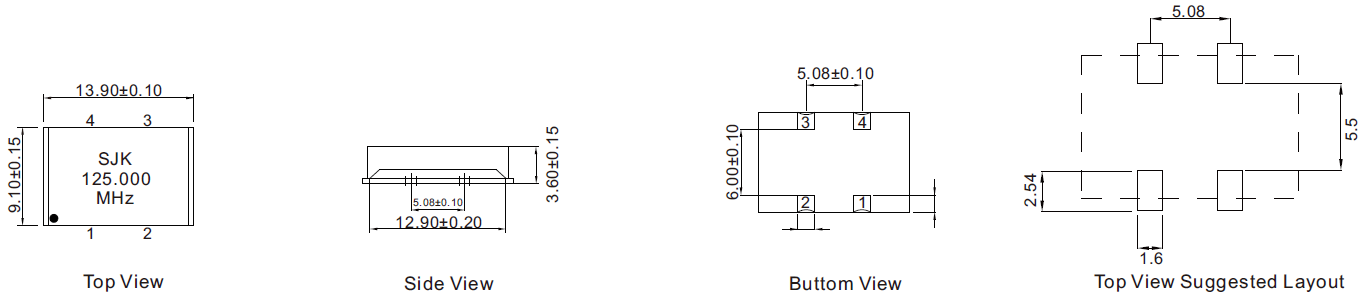

Dimensions and footprint (Recommended):

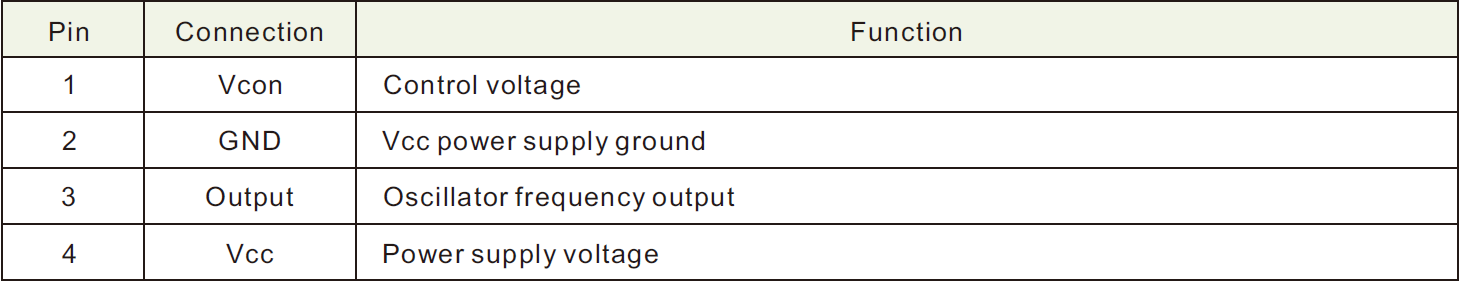

Pin map:
