Electrical Specifications:
| Item /Type | A2 |
| Frequency Range |
4~ 40MHz |
|
Overtone |
Fundamental |
|
Frequency Tolerance (at 25 ℃) |
± 30 ppm, ± 50 ppm Max. |
|
Frequency Stability Over Operating Temperature Range |
± 150 ppm Max. |
|
Operating Temperature Range |
-40 ~ +150℃ |
|
Drive Level |
10 μW (typical) ; 500 μW (Max.) |
|
Load Capacitance |
12 pF, or specify |
|
Storage Temperature Range |
-40 ~ +150 ℃ |
|
Reliability Standard |
AEC-Q200 |
|
Equivalent Series Resistance (ESR) |
200Ω Max. (4~10MHz) |
|
100Ω Max. (10~12MHz) |
|
|
80Ω Max. (12~40MHz) |

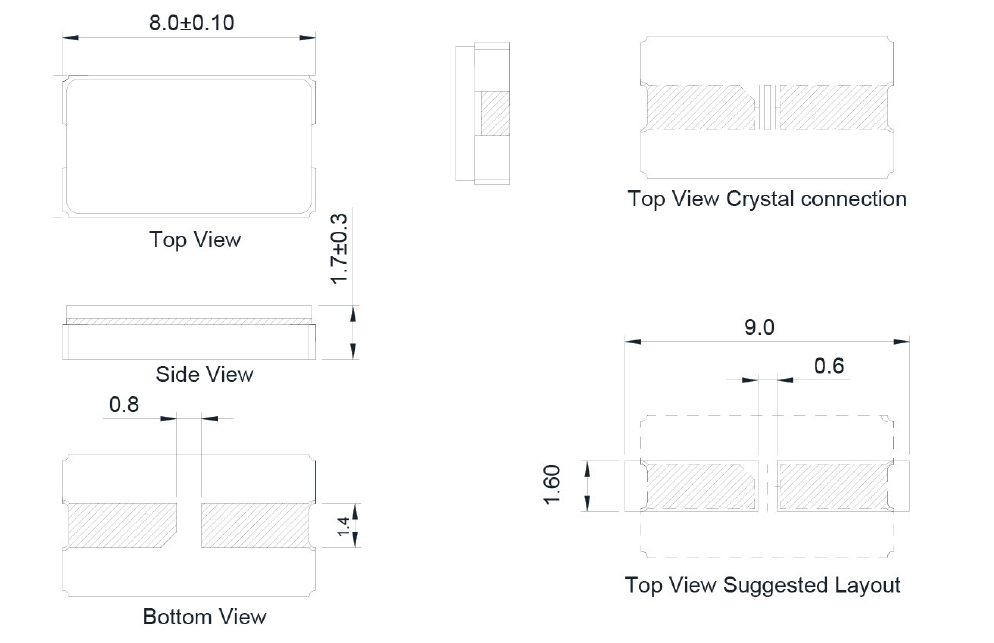

Dimensions [Unit: mm]:
