Electrical Specifications:
| Part Number | Center Frequency (MHz) | Frequency Tolerance | Insertion Loss (dB) max. | Package Code |
| R303.825 | 303.825 |
±30KHz / ±75KHz |
1.3 | TO-39 |
| R303.875 | 303.875 |
±30KHz / ±75KHz |
1.2 | TO-39 |
| R310 | 310.000 |
±30KHz / ±75KHz |
1.5 | TO-39 |
| R315 | 315.000 | ±30KHz / ±75KHz | 1.5 | TO-39 |
| R316.8 | 316.800 |
±30KHz / ±75KHz |
1.2 |
TO-39 |
| R330 | 330.000 |
±30KHz / ±75KHz |
1.6 |
TO-39 |
| R350 | 350.000 |
±30KHz / ±75KHz |
1.5 |
TO-39 |
| R360 | 360.000 |
±30KHz / ±75KHz |
1.3 |
TO-39 |
| R370 | 370.000 |
±30KHz / ±75KHz |
1.4 |
TO-39 |
| R390 | 390.000 |
±30KHz / ±75KHz |
1.5 |
TO-39 |
| R407.3 | 407.300 |
±30KHz / ±75KHz |
1.3 | TO-39 |
| R418 | 418.000 |
±30KHz / ±75KHz |
1.4 |
TO-39 |
| R433 | 433.920 |
±30KHz / ±75KHz |
1.9 |
TO-39 |
| R868.35 | 868.350 |
±75KHz / ±150KHz |
2.1 |
TO-39 |

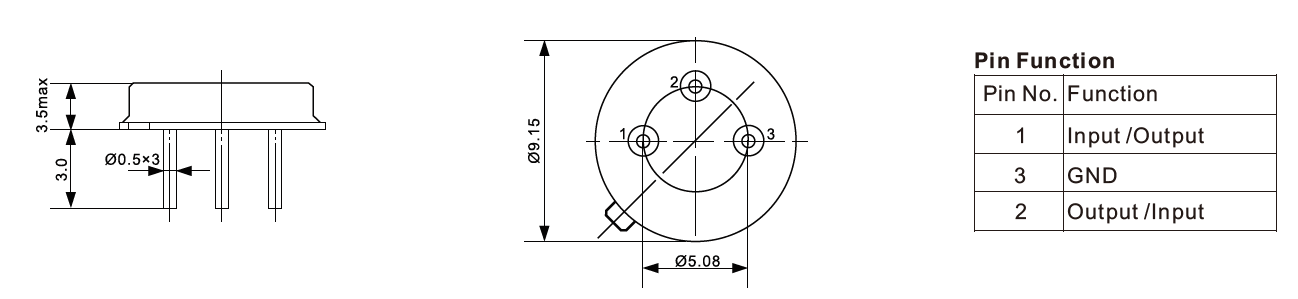

Dimensions [Unit: mm]:
