SJK晶科鑫代理TXC全系列晶体振荡器,包含不限于晶体振荡器、差分晶振、VCXO压控晶振、TCXO温补晶振等,具有超高精度、高频率、高稳定性、低功耗等特点,输出模式可提供CMOS、LVPECL、LVDS、HCSL、Clipped sinewave等选择,低功耗1.8V~5.0V工作电压可选,高频率1MHz~700MHz可选,如需详情,可与我司进行沟通联系.
| Photo | Series | Size(LxWxH)[mm] | Frequency Range | Operature Temperature | Output Type | Supply Voltage | Frequency stability | consumption | 样品申请 | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
TXC CX差分SMD 5032 HCSL有源晶振 | 5.0×3.2×1.2 | 25MHz~200MHz | -40~+85℃ | HCSL | 2.5V/3.3V | ±50ppm | 30mA | 样品申请 |  |
 |

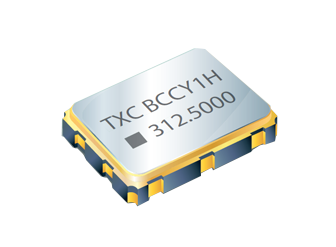

TXC BC SMD 7050 LVPECL有源晶振 | 7.0×5.0×1.3 | 75MHz~700MHz | -40~+85℃ | LVPECL | 2.5V/3.3V | ±50ppm | 99mA | 样品申请 | |
 |
TXC BG SMD 7050 LVDS有源晶振 | 7.0×5.0×1.3 | 75MHz~700MHz | -40~+85℃ | LVDS | 2.5V/3.3V | ±50ppm | 99mA | 样品申请 | |
 |
TXC BX SMD 7050 HCSL有源晶振 | 7.0×5.0×1.3 | 25MHz~200MHz | -40~+85℃ | HCSL | 2.5V/3.3V | ±50ppm | 30mA | 样品申请 | |
 |

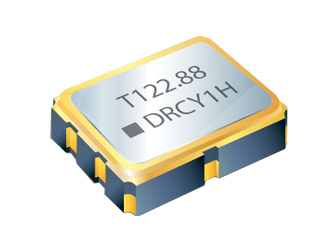

TXC DR SMD 3225压控晶振 | 3.2×2.5×0.95 | 50MHz~200MHz | -40~+85℃ | CMOS | 3.3V | ±50ppm | 60mA | 样品申请 | |
 |
TXC CR SMD 5032压控晶振 | 5.0×3.2×1.2 | 50MHz~200MHz | -40~+85℃ | CMOS | 3.3V | ±50ppm | 60mA | 样品申请 | |
 |

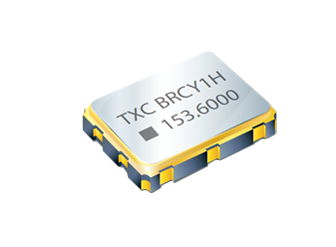

TXC BR SMD 7050压控晶振 | 7.0×5.0×1.3 | 50MHz~200MHz | -40~+85℃ | CMOS | 3.3V | ±50ppm | 60mA | 样品申请 | |
 |

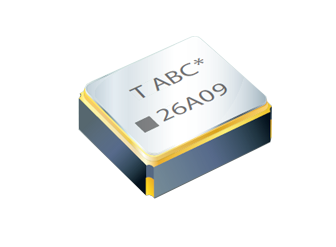

TXC 8P SMD 1612温补晶振 | 1.6×1.2×0.6 | 26MHz~52MHz | -30~+85℃ | Clipped Sinewave | 1.8V~3.3V | ±0.5ppm~±2ppm | 2mA | 样品申请 | |
 |

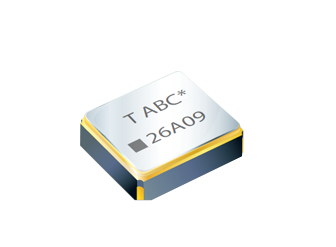

TXC 7Z SMD 2016温补晶振 | 2.0×1.6×0.75 | 26MHz~52MHz | -30~+85℃ | Clipped Sinewave | 1.8V~3.3V | ±0.5ppm | 2mA | 样品申请 | |
