Electrical Specifications:
| 型号 | 频率范围(MHz) | 频率精度(%) | 温度稳定性(-25~+85℃)(%) | 工作温度(℃) | 老化率(10年)(%) |
| ZTACP□MG | 2.00~2.99MHz | ±0.5 |
±0.2 |
-40~+125 |
±0.1 |
| ZTACP□MG |
3.00~3.49MHz |
±0.5 |
±02 |
-40~+125 |
±0.1 |
|
ZTACP□MG |
3.5~12MHz |
±0.5 |
±0.2 |
-40~+125 |
±0.1 |
|
ZTTCP□MG |
2.00~2.99MHz |
±0.5 |
±0.2 |
-40~+125 |
±0.1 |
|
ZTTCP□MG |
3.00~3.49MHz |
±0.5 |
±0.2 |
-40~+125 |
±0.1 |
|
ZTTCP□MG |
3.5~12MHz |
±0.5 |
±0.2 |
-40~+125 |
±0.1 |

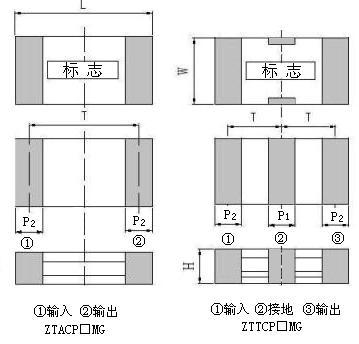

Dimensions and footprint:
| 型号 | L | W | H | P1 | P2 | T |
|
ZTACP□MG |
6.0±0.2 |
3.0±0.2 |
1.6±0.2 |
1.2±0.2 |
1.2±0.2 |
4.8±0.2 |
|
ZTTCP□MG |
6.0±0.2 |
3.0±0.2 |
1.6±0.2 |
1.2±0.2 |
1.2±0.2 |
2.4±0.2 |
